11KW GI Steel Frame Purlin Roll Forming Machine CE Certificated

Name: 11KW GI Steel Frame Purlin Roll Forming Machine CE Certificated
Brand: NKH MACHINERY
Price: 1 USD

Buy cheap 11KW GI Steel Frame Purlin Roll Forming Machine CE Certificated product

Brand Name : NKH MACHINERY

Model Number : U50

Certification : CE/SONCAP/CSA

Place of Origin : CHINA

MOQ : 1 UNIT

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 10 UNITS/MONTH

Delivery Time : 40 WORKING DAYS

Packaging Details : NUDE CARGOES FOR ROLL FORMER WITH CUTTER IN 20/40FT CONTAINER, WOODEN BOX FOR PLC CONTROL CABINET

name : purlin roll former

Raw material : GI sheets, G350

Shaft Diameter : 75mm

Cutting blade material : Cr12, heat treatment

Coil Weight : 1.5T or as request

Warranty : 12 months

Contact Now

China Power 11kw Steel Frame Roll Forming Machine , Modern U50 Purlin Machine CE Certificated factory

Quick Detail:

Thickness : 1.5mm-2.3mm
Material : Galvanized sheets
Material weight : 1.5Mt
Coil inner diameter : 508mm
Driven way: by 11kw driven motor
Cutting way: by hydraulic power pack, post punch, post cut
Cutting tolerance : ±1mm

Machine list:

Hydraulic De-coiler or Manual Un-coiler rack
Pre-leveling device
Roll forming machine
Hydraulic Post-punch & Post- cut device
Run out table
PLC control systems

Description/Technical Parameter details of complete line:

5TX600mm Hydraulic Un-coiler or manual de-coiler

You can adopt to :

Manual de-coiler

Hydraulic un-coiler

Hydraulic & Driven de-coiler

Pre-Leveling Device

Pre-Level Device with 4 over 3 shafts to remove the Coil-set

Share the same motor with the roll former

Roll forming machine with cutting details as below table :

Suitable roll forming material	Color steel sheet or galvanized steel sheet
Thickness	1.5-2.3mm
Carriage Frame design	wall-plate-frame-type
Rolling mills forming stages	10 stages
Material of forming roller	Cr12, heat treatment
Shafts Diameter	Φ75mm
Main motor power	11Kw
Production speed	18m/min
Hydraulic group power	7.5Kw
Material of cutting blade	Cr12, heat treatment
Electric Voltage Standard	220V/50Hz/3PH or as request
Major Color of Machine Painted	RAL 5012(Sky Blue) or as request

PLC Control System

Simens PLC, touch screen, Omron encoder, Schneider/Shihlin/Delta inverter

Product Rack 4 meter long ,rolled type

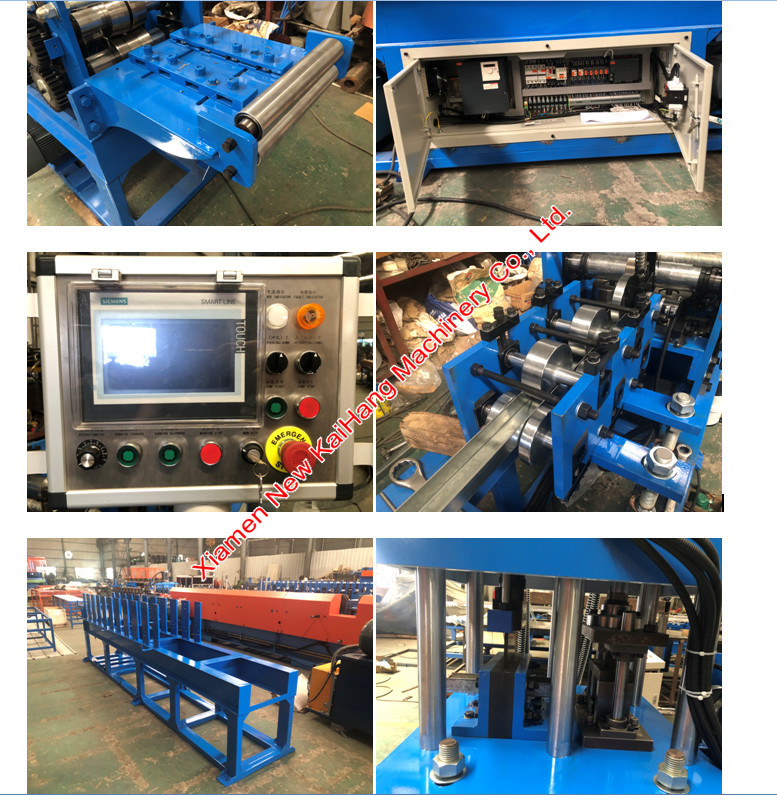

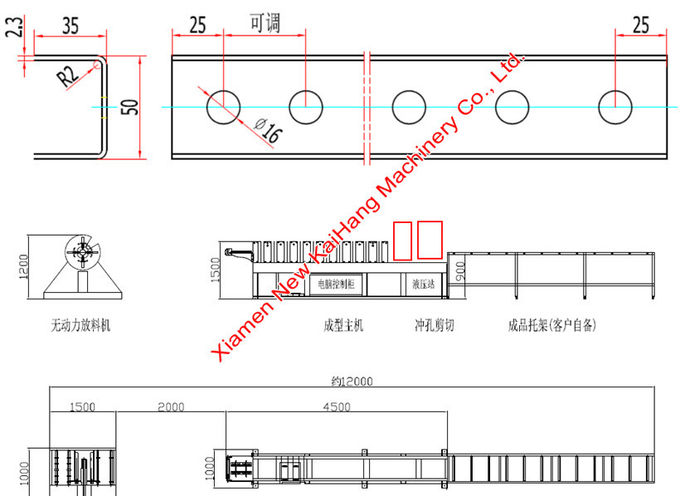

Profile Drawing/Layout/Equipment reference pictures:

11KW GI Steel Frame Purlin Roll Forming Machine CE Certificated
